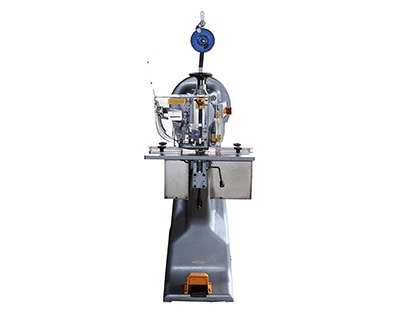

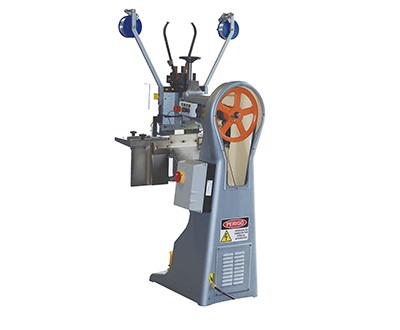

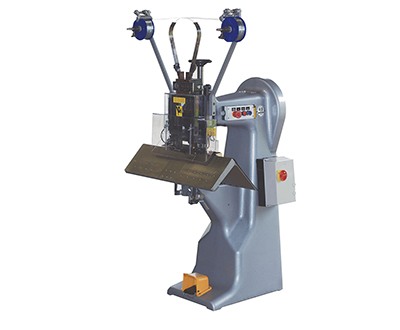

Model 3 – D2
DescriptionTechnical SpecificationDownloads (pdf)
Designed through Model 3, approved by customers worldwide, the Model 3 with 2 heads, applies 2 clamps in a single drive. It is indicated for stapling magazines and notebooks, with a stapling thickness of 4mm, the equivalent of 40 sheets, or 160 pages. Model 3 D2 applies up to 180 clamps.
| Thickness | up to 4 mm |
| Optional stitching head | from 4,0 mm up to 8 mm |
| Width of staple | 15 mm - 9/16" |
| Staples per minute | 180 |
| Types of wire round and flat | 24, 26 and II-24 |
| Table inclination for saddle operation | 45o |
| Width of table | 210 mm - 8 1/4" |
| Lenght of table | 745 mm - 29 1/4" |
| Motor | 1/2 HP tree-phase |
| 1100 RPM, 50 / 60 Hz | |
| 220 / 380 volts | |
| Space between staples | 2,0" to 6,5" |
| Total weight | 525 Lb |
| Dimensions | 900 x 700 mm - 35" x 28" |
*The technical specifications herein indicated may be modified at any time by manufacturer's own convenience.
