Model 22020-06-08T03:31:13+00:00

Click on the image to enlarge

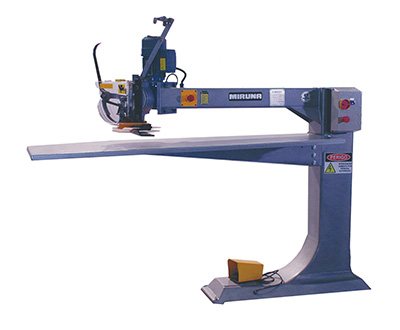

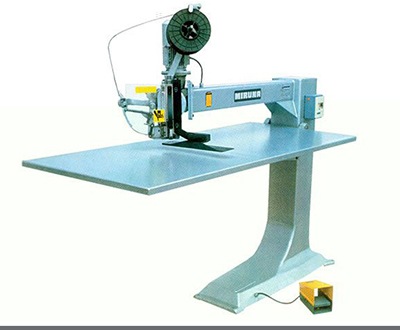

Maquina-de-grampear-Miruna-Model-2-1 Maquina-de-grampear-Miruna-Modelo-00-2
DescriptionTechnical Specification:Manual de Instalação

Electric wire stitching machine with manual feed, applied in the manufacture of corrugated cardboard packaging, ideal for closing the side of corrugated cardboard boxes.



Staple thickness Up to 16 mm
Staple width 14 mm
Staples per minute 200
Wire 0,50 x 2,50 mm
Length of table 1.800 mm
Width of table 900 mm
Engine 220 / 380V - 0,75 HP -
1.700 RPM - 60Hz..
Clearance between center of machine and stapler 1.200 mm
Staples in 45º angle
Net weight: 320 Kg

* The above specifications may change at any time, at the sole discretion of the manufacturer.

clique pra Download
