Model 3
DescriptionTechnical SpecificationDownloads (pdf)

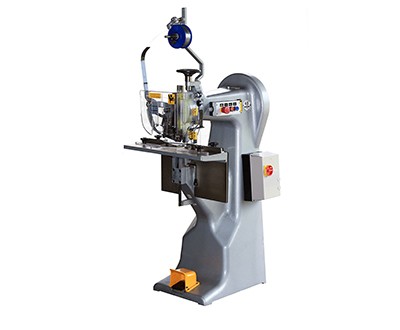

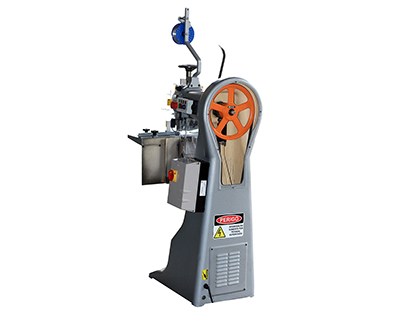

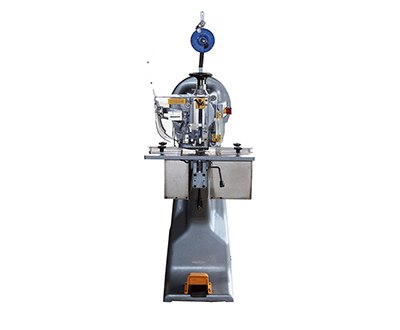

The model 3 stapling machine, widely used in the graphic and editorial market, has high performance in stapling blocks, magazines, notebooks, books and catalogs. Developed since 1950 under a robust and durable design, its system is built for high performance of both high and low.
Stitching applications in the printing and postpress industry
A - For stapling notebooks, magazines, and catalogs, you need only to incline the table at a 45o angle.
B - For stapling of pads and books you need only adjust for the thickness of the volume to be bound.
| Stapling thickness | 0,4 to 25 mm - (1") |
| Staple width | 14 mm - (9/16") |
| Production capacity | 220 staples per minute |
| Round and Flat wire | 210/ 22 / 24 / 26 / V |
| Incline of table | 45 degrees |
| Table width | 200 mm. - (7.7/8") |
| Table length | 600 mm - (23.1/2") |
| Electric Motor | 1 / 2 HP triple phased from 1450 to 1700 RPM de 50 / 60 Hz-220 / 380 volts |
| Total weight | 200 kg - (440 lb) |
| Dimensions | 1000 x 700 mm - (35"x27") |
