Wire For Stitching Applications In The Printing Industry

DescriptionTechnical SpecificationDownload (pdf)

These wires are produced under high quality control. The printing industry requires a consistent hardness and coating, smooth surface and flake-free coating guaranteeing a perfect stapling of catalogs, magazines, books and blocks. This type of wire is also used in the packaging of products, brushes, and other industrial purposes.

The ideal gauge depends on where it will be utilized. For example, for a more delicate application a thinner gauge would be more appropriate. Ask our sales department about the full range of gauges.

The finishing of this wire can be either polished, galvanized or stainless steel, ensuring greater protection against the weather.

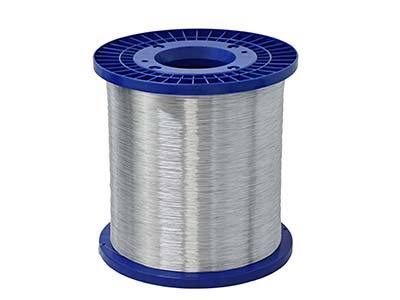

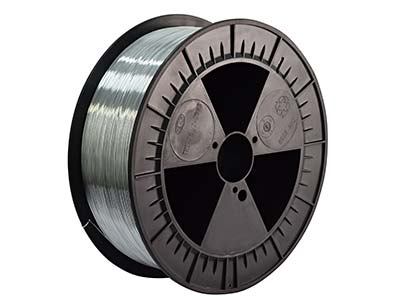

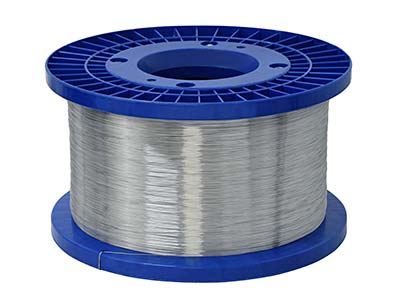

The wire may be prepared in spools of 2.20 kg, 3.50 kg, 4.50 kg, 10.00 – 12.00 kg, 13.00 kg, 15.00 - 20.00 kg, 31.00 kg, or 65.00 kg. These are packed in cardboard boxes, for easy handling and storage, and better protection against the weather.

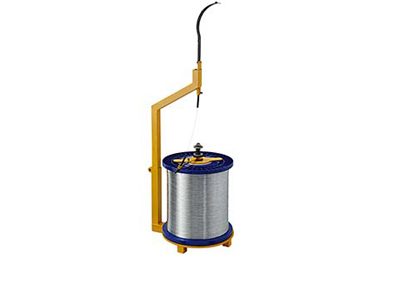

Should the customer require, we can develop de-spoolers to facilitate the use of the product and the production speed increase.

To increase service life, always keep the wire spools inside the original corrugated box, safe from moisture, until they are used. For more tips, ask our salespeople for Miruna Manuals.

Arame

Wire

Diâmetro
(mm ; pol)

Diameter
(mm ; in)

Espessura Máx de Grampeação

Max. Stitching Thickness

Comprimento(m/kg ; pés/lb)

Lenght
(m/kg ; feet/lb)

Quantidade Aprox. de Folhas

Approx. Paper Sheets

Máquina Miruna

Miruna´s Stitching Machine

26

0,50 ; 0.0196

4 mm

649 ; 966.0

2 - 10

Model 3 Model 3 D2

25

0,55 ; 0.0216

6 mm

536 ; 796.1

2 - 20

Model 3 Model 3 D2

24

0,60 ; 0.0236

8 mm

450 ; 624.6

10 - 30

Model 3 Model 3 D2

23

0,65 ; 0.0255

12 mm

331 ; 492.1

20 - 40

Model 3

22

0,70 ; 0.0275

16 mm

288 ; 428.3

20 - 50

Model 3

21

0,80 ; 0.0314

20 mm

253 ; 377.8

30 - 60

Model 3

20

0,90 ; 0.0354

25 mm

200 ; 297.4

60 - 200

Model 3

II 24

0,75 x 0,45
0.030 x 0.018

8 mm

377 ; 548

10 - 30

Model 3 D2 Model 7

III 23

0,75 x 0,55
0.030 x 0.022

8 mm

308 ; 452

20 - 40

Model 3 D2 Model 7

V 21

0,90 x 0,65
0.035 x 0.026

25 mm

218 ; 325

60 - 200

Modelo 3

The dimensions expressed in the tables above were arrived at by approximation.

The above specifications may change at any time at the sole discretion of the manufacturer.
